An inductive vehicle loop detector is a buried wire loop connected to an evaluator unit that detects vehicles by measuring a change in inductance. It's the standard sensor for traffic signal actuation, boom gates, parking systems and vehicle counting, and any procurement spec should reference AS 2703 or the relevant departmental standard as the baseline for equipment quality.
TL;DR:
- Detectors should meet the sensitivity range of 100 to 700 microhenries and include automatic drift compensation to avoid false calls or missed detections.
- Proper sawcut quality, continuous looping wire, and weatherproof sealing are critical to preventing the majority of installation failures.
- Vendors must provide detailed specifications for sensitivity levels, frequency management, inductance range, and diagnostic features to ensure compliance and performance.
- Loop detection works best with single, short, and tightly tuned loops for access control and dual loops for vehicle speed and classification data; site needs determine the best setup.
- Regular re-tuning and verification of inductance readings are essential, especially on high-traffic sites or after pavement work, to maintain accurate detection over time.
Table of Contents
- How inductive loop detectors work
- Standards and specifications to quote in a tender
- Installation and placement best practice
- Specifying detector performance to vendors
- Maintenance, faults and troubleshooting
- What 30 years of installations teaches you about loop selection
- Vicgates for gate and access control projects using loop detection
- Sources
How inductive loop detectors work
A loop detector system has three parts: the wire loop set into the pavement, a lead-in cable running to a termination point, and the electronics unit that reads the loop's electrical behaviour. When a vehicle sits over the loop, its metal mass changes the loop's inductance. The detector electronics pick up that shift and switch an output relay or optical signal. The FHWA's Traffic Detector Handbook describes this as a reduction in loop inductance, with modern units using self-tuning frequency or period-shift methods to separate a genuine vehicle from electrical noise.
Two things determine how a loop behaves on site:
- Detection mode. Presence mode holds the output active for as long as a vehicle occupies the loop, used for boom gates and safety loops. Passage (or pulse) mode fires a brief output as the vehicle crosses, used for counting and signal actuation.
- Channel configuration. Single loops give basic presence or passage data. Dual loops, spaced a known distance apart, let the system calculate speed and vehicle length, which supports classification.
- Loop shape. Rectangular loops suit general vehicle detection. Diamond and quadrupole loops give tighter, more localised sensitivity, useful where bicycles or motorcycles need separate detection from cars.
Inductive loops have stayed the dominant in-roadway sensor since the 1960s for a practical reason: they're weather insensitive and their geometry can be adapted to almost any lane configuration, which is why they remain the benchmark against which radar and video detection are still measured.
Standards and specifications to quote in a tender
Getting the paperwork right at tender stage avoids arguments about compliance later. Australian projects should reference two documents as a minimum.
- AS 2703 sets the baseline requirements for vehicle detector performance, including sensitivity, tuning behaviour and output characteristics that any compliant loop detector must meet.
- Transport and Main Roads specification MRTS204 goes further, specifying combined loop and feeder inductance in the range of roughly 100 µH to 700 µH, defining operating modes, sensitivity settings, and mandating type approval or NATA test certification before a detector goes into service.
- Standard drawings SD1424, SD1425, SD1701 and SD1702 define loop geometry, saw cut patterns and placement dimensions for signalised intersections, and should be called up by number in any tender document rather than paraphrased.
MRTS204 in one line: the specification requires automatic drift compensation, so a correctly installed and tuned detector re-centres itself after a genuine inductance shift rather than drifting into false calls or missed detections.
For SCATS integration, the controller interface only cares about clean contact outputs. SCATS technical guidance notes a typical loop size used for signalised approaches is commonly several meters by around two meters, and confirms loops can be substituted with video or other detection technology provided the output to the TSC/4 controller behaves the same way. If your tender is signal related, quote the NSW SCATS technical pages directly rather than relying on a manufacturer's interpretation of them.
Installation and placement best practice
Most loop failures trace back to installation shortcuts, not equipment defects. Get the physical work right and the electronics rarely give trouble.
- Sawcut quality matters more than most crews expect. Slots need smooth edges with no chipping, cleaned out with dry compressed air before the wire goes in, because grit and moisture trapped under the sealant are a leading cause of premature loop failure.
- Wind the loop as a single continuous length of wire, with the number of turns matched to the detector's specified inductance range, avoiding splices mid-run.
- Feeder cable runs underground in conduit, wired to comply with applicable electrical wiring standards, with enough slack left at the termination pit to allow re-termination without disturbing the loop end.
- Avoid intermediate splices entirely. Every joint is a future fault point.
- Keep loops clear of manholes, driveway crossovers and lane-change zones, and maintain consistent spacing between loops in adjacent lanes to stop crosstalk.
Sealing and termination in weatherproof enclosures protects the connection long after the sawcut has been forgotten, a detail MRTS204 treats as a formal witness point rather than an optional extra.

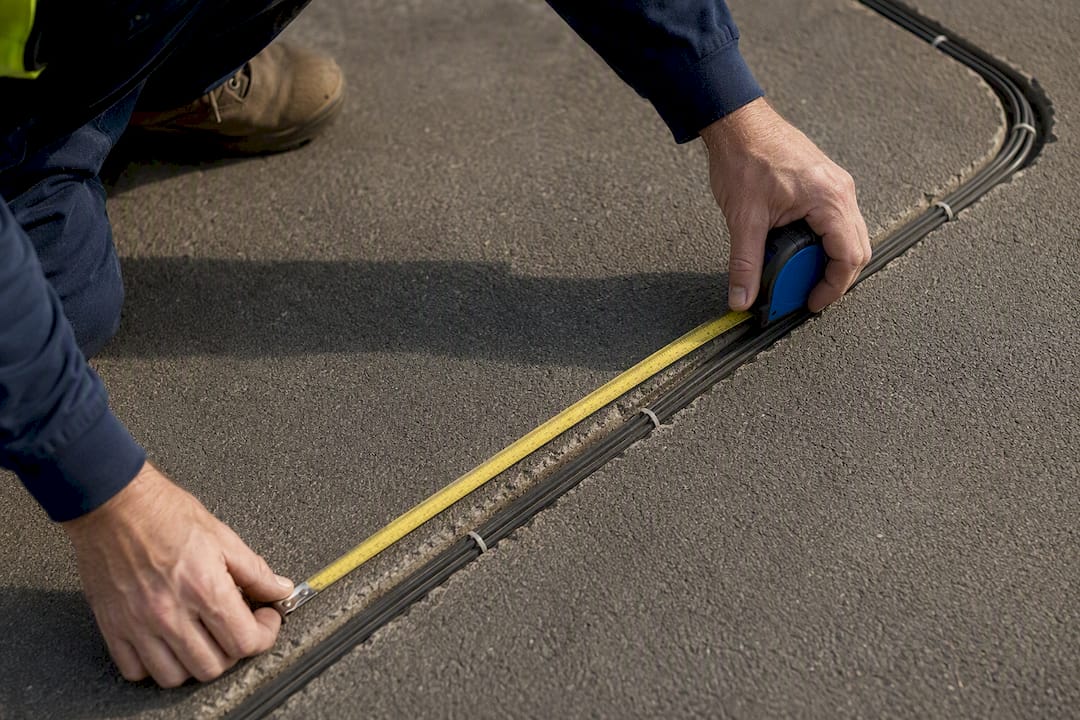

Pro Tip: Photograph the open sawcut before backfilling, with a tape measure in frame. It's the cheapest insurance you'll ever buy against a dispute over loop depth or turn count six months down the track.
Specifying detector performance to vendors
Vendors will quote whatever spec sheet is easiest to sell unless you ask specific questions. Push for these numbers before you sign off on any detector.
- Sensitivity range and tuning steps. A capable detector offers at least five sensitivity levels with automatic tracking, so it re-tunes itself after small inductance drifts instead of needing a technician back on site every time the pavement settles.
- Frequency selection. Ask how the unit avoids crosstalk between adjacent loop channels; most quality detectors let you assign different operating frequencies per channel for exactly this reason.
- Inductance range. Confirm the combined loop plus feeder inductance sits within roughly 100 µH to 700 µH, matching MRTS204's specified band, and that turn off/presence timing is configurable for your application.
- Outputs and diagnostics. Confirm relay or optical outputs, diagnostic LEDs for loop allocation, and a built in test function that lets a technician verify wiring during commissioning without needing test vehicles.
Manufacturer note worth knowing: detector ranges like the Pepperl+Fuchs LC10 series include a boost sensitivity mode aimed specifically at heavy vehicles with higher chassis clearance, which matters if your site sees regular truck traffic and standard sensitivity settings are missing high-riding vehicles.
Maintenance, faults and troubleshooting
Loop detectors are low maintenance compared with video or radar systems, but they aren't maintenance free. Three fault patterns show up repeatedly.
- Undercounting in queued traffic, usually a symptom of a loop that's too long for the application, where multiple vehicles register as one continuous presence.
- Intermittent dropouts from a cracked sealant allowing moisture ingress, which reads as an erratic inductance signal rather than a clean fault.
- Earth leakage or interference from nearby cabling, often traced to a feeder cable run too close to power conduit.
Diagnostic LEDs and frequency readouts on the detector unit are your first troubleshooting step, not a multimeter. If a loop shows a persistent fault code, measure inductance at the termination panel before assuming the loop itself has failed. Keep the original NATA test certificate and installation documentation on file. When a detector is retuned or replaced, log the new settings against that documentation so the next technician isn't starting from zero.
Pro Tip: Set a calendar reminder for annual re-tuning checks on high-traffic sites, even if nothing seems wrong. Drift compensation handles small changes, but pavement resurfacing or nearby excavation work can shift inductance enough to need a manual reset.
What 30 years of installations teaches you about loop selection
Short advance loops outperform long stop bar loops for counting in almost every queued traffic scenario, and dual loops earn their extra cost quickly wherever speed or classification data matters, since adding a second loop is far less civil work than swapping to video or radar detection. Access-control gates and signalised intersections call for genuinely different thinking: a boom gate wants a short, tightly tuned single loop with boost sensitivity for delivery trucks, while a signalised approach often justifies dual loops purely for the speed data.
The acceptance checklist that actually protects a client long term includes turn count, sawcut depth, inductance reading at handover, and the NATA certificate for the installed unit. Skip any one of those and you're troubleshooting blind in twelve months.
— Rhys
